Measurement Uncertainty Calculations: A Practical Guide for Testing and Calibration Labs

Every measurement is an estimate. A balance reading, a pipette volume or an HPLC assay result is only useful if you know how far it could be from the true value. That is what measurement uncertainty tells you. For testing and calibration labs it is also an accreditation requirement, and for pharma QC it sits quietly behind every pass or fail decision. This guide explains why uncertainty matters, how the standard method works, and how to build a simple uncertainty budget without overcomplicating it.

Why Measurement Uncertainty Matters

Clause 7.6 of ISO/IEC 17025:2017 sets the baseline. Calibration labs must evaluate uncertainty for every calibration, including in-house calibrations of their own equipment. Testing labs must evaluate it where the method allows; where a rigorous evaluation is not possible, a reasonable estimate based on theory or experience is expected (Perry Johnson Laboratory Accreditation). Calibration certificates are expected to report the uncertainty alongside the result, because the next user in the traceability chain needs it for their own budget.

The bigger change in the 2017 edition was the formal decision rule. The standard defines it as a rule that describes how uncertainty is accounted for when stating conformity with a requirement. When a customer asks for a pass/fail statement, the rule must be defined and agreed with them (clause 7.1.3). The lab must document it, taking into account the level of risk, such as false accept and false reject (clause 7.8.6.1), and the report must identify which rule was applied (clause 7.8.6.2) (PJLA, 2018).

ILAC G8:09/2019 gives practical guidance on choosing these rules. The simplest is simple acceptance, where the acceptance limit equals the tolerance and uncertainty is controlled only as a precondition. The more conservative option is a guard band, which narrows the acceptance zone. UKAS notes that setting the guard band equal to the expanded uncertainty gives roughly a 2.5% probability of false acceptance for a single-sided limit (UKAS LAB 48). For example, a ±100 µV tolerance with an 8 µV expanded uncertainty gives a guard-banded acceptance zone of ±92 µV (Fluke). Our post on the calibration and qualification services market covers how labs and vendors are adapting.

The GUM Approach in Plain English

The reference method is the Guide to the Expression of Uncertainty in Measurement (JCGM 100:2008), usually called the GUM. It works in five steps.

• Define the measurand. Write the equation that links the result to its inputs, such as error = indicated mass minus reference mass.
• List the sources. Reference standards, repeatability, resolution, drift, temperature, operator and environment.
• Quantify each one. Type A components come from statistics on repeated readings (a standard deviation). Type B components come from other information: certificates, specifications, manuals or experience. A certificate value quoted at k = 2 is divided by 2; a ±a limit with no other information is usually treated as rectangular and divided by √3.
• Apply sensitivity coefficients. Each input is multiplied by how strongly it moves the result. For gravimetric pipette calibration, a temperature error affects the water density used to convert mass to volume, so its coefficient is the rate of change of volume with temperature.
• Combine and expand. Square each standard uncertainty, add them, and take the square root to get the combined standard uncertainty (u_c). Multiply by a coverage factor k to get the expanded uncertainty U.

The usual choice is k = 2, which gives a coverage probability of about 95% when the result is close to normally distributed. When the effective degrees of freedom are small, a larger k from the t-distribution is needed. Using k = 2 with ten or fewer effective degrees of freedom is a common audit finding (ISOBudgets).

Top-Down vs Bottom-Up

The GUM method is bottom-up: you model every input and build the total. It suits calibration well, because the measurement equation is short and the inputs are known.

Chemical and biological test methods are messier. Sample preparation, matrix effects and analyst technique are hard to model one by one. The Eurachem/CITAC guide, Quantifying Uncertainty in Analytical Measurement (3rd edition, 2012) explicitly allows the use of validation and related data instead. In a top-down estimate, intermediate precision from validation or QC charts captures random effects in one term, and bias studies against reference materials or proficiency testing capture systematic effects. If you have completed compendial method verification, you have a head start.

“An uncertainty budget is not paperwork for the assessor. It is the evidence that your pass or fail decisions can be trusted.”

Worked Example: A Balance Calibration Budget

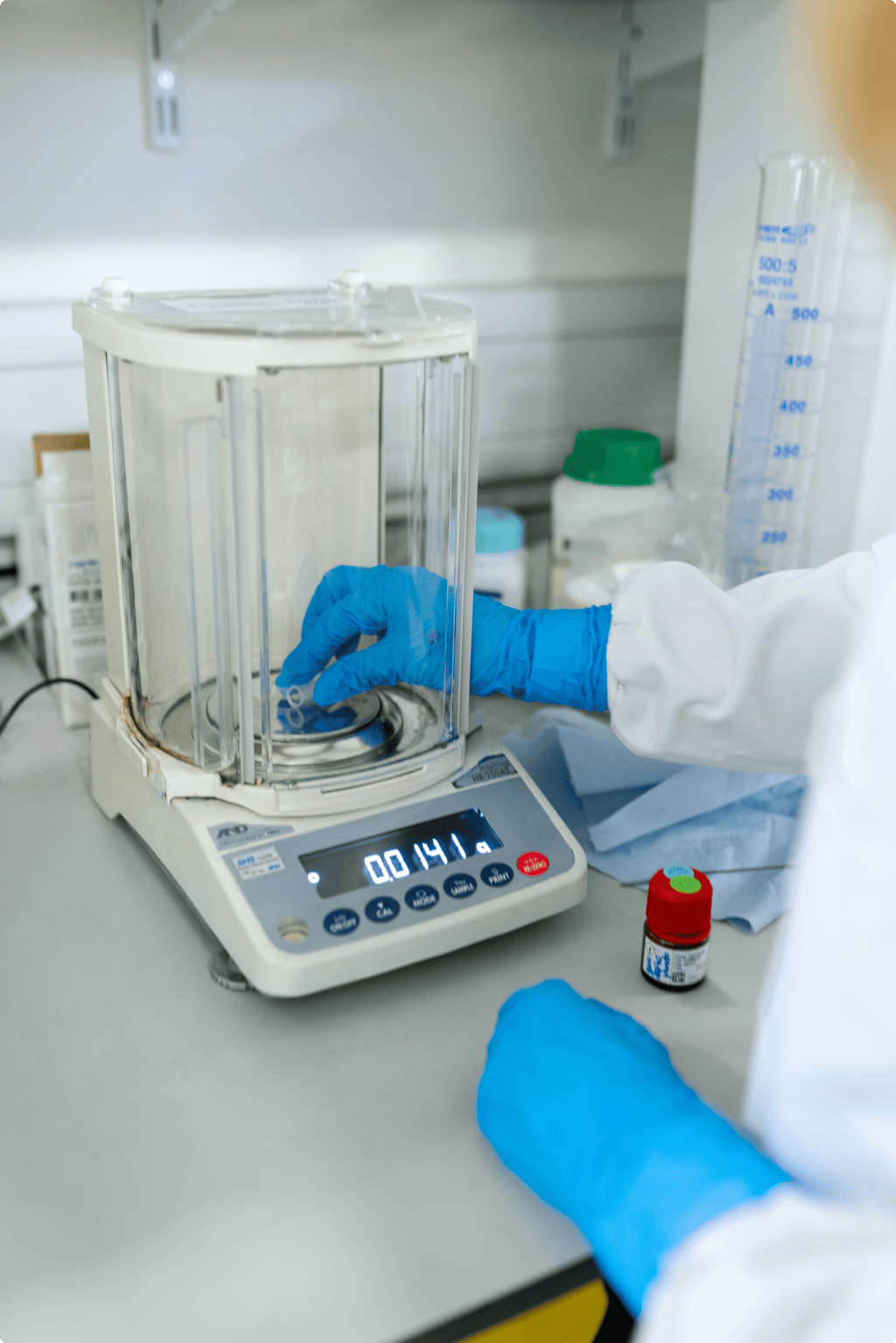

The numbers below are illustrative only. They show the mechanics for the error of an analytical balance (d = 0.1 mg) at a 100 g test point, using a calibrated reference weight and ten repeat readings. All sensitivity coefficients are 1, because each input feeds directly into the error in milligrams.

Source (illustrative)	Type and basis	Standard uncertainty (mg)
Reference weight certificate, U = 0.050 mg	B, normal, divide by k = 2	0.025
Reference weight drift, ±0.030 mg	B, rectangular, divide by √3	0.017
Repeatability, s = 0.060 mg, mean of 10	A, s/√10	0.019
Resolution at load, ±0.05 mg	B, rectangular, divide by √3	0.029
Resolution at zero, ±0.05 mg	B, rectangular, divide by √3	0.029
Air buoyancy, ±0.020 mg	B, rectangular, divide by √3	0.012
Combined standard uncertainty, uc	Root sum of squares	0.056

With k = 2, the expanded uncertainty is about 0.11 mg. The Type A term has nine degrees of freedom, but it is a small share of the total, so the effective degrees of freedom are large and k = 2 is justified. Notice that resolution dominates. If the lab wanted a smaller uncertainty, a better reference weight would help less than a finer readability balance.

Now apply a decision rule. If the illustrative tolerance at this point were ±0.20 mg and the lab used a guard band equal to U, it would only declare a pass for errors within about ±0.09 mg. Errors between 0.09 and 0.20 mg would be reported without a pass statement, or flagged, depending on the agreed rule.

Common Mistakes

• Forgetting to divide by k. A certificate value at k = 2 entered as a standard uncertainty doubles that contribution.
• Ignoring resolution. Display rounding is often one of the biggest terms on digital instruments.
• Double counting. If repeatability already includes operator and short-term environmental variation, do not add them again.
• Assuming k = 2 by default. Check effective degrees of freedom when Type A data dominate.
• Budgets that never change. Update the budget when equipment, methods or reference standards change, and compare it against QC and proficiency data.
• Silent decision rules. A pass/fail statement without a documented and agreed rule is a nonconformity under clause 7.8.6.

The Pharma Angle: USP <41> and Minimum Weight

Pharmaceutical labs meet uncertainty most directly at the balance. USP <41> requires that two times the standard deviation of at least ten replicate weighings, divided by the smallest net weight, is no more than 0.10%. If the measured standard deviation is below 0.41d, 0.41d is used instead, so a perfect-looking s of zero cannot pass by accident. The accuracy test uses a weight between 5% and 100% of capacity, read within 0.10% of its value (Mettler Toledo).

What This Means for Lab and Quality Leaders

Treat uncertainty as part of the quality system, not a one-off spreadsheet. Assign an owner for each budget. Link budgets to the equipment register and change control. Agree decision rules with customers at contract review, and make sure certificates and reports state them clearly. For outsourced calibration, review supplier certificates for the uncertainty, the coverage factor and the decision rule before you accept the instrument back into use.

Start with the measurements that drive release decisions: balances, pipettes, pH meters, temperature mapping and key assays. A small number of well-built budgets will cover most of the risk. Terraforme Biosciences helps labs build ISO/IEC 17025 and GMP-ready quality systems, including uncertainty procedures, decision rules and supplier oversight. Learn more about our quality management system services.
